83105879 Danfoss Axial Piston Pump - 100 cc/rev - ER R 100B

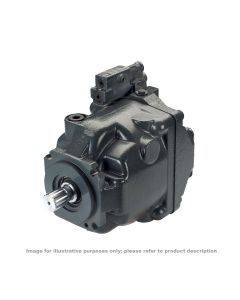

83105879 Danfoss Axial Piston Pump

Product group: Series 45 Open Circuit Axial Piston Pumps - E Frame

Model code: ER-R-100B-LS-20-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN

Features for the Danfoss Axial Piston Pump 83105879:
E Frame Axial Piston Open Circuit Pump
Rotation: R - Clockwise Rotation
Displacement and load life: 100 cc/rev - 310 Bar Maximum Continuous Rated Pressure
Control type: Pressure compensated / Load sensing [PC Pressure Range: 100-280 bar, LS Pressure Range: 10-40 bar]
Pressure Comp Setting: 200 Bar [2900 psi]
Load Sensing Setting: 20 Bar [290 psi]
Torque Limiter Setting: Not Applicable
Choke Orifice: None
Gain Orifice: Standard Orifice
SHAFT/AUX FLG/ENDCAP: 14 Tooth 12/24 Pitch Shaft, Running Cover, Radial, Inlet: 4-Bolt Split Flange (2.5 Inch Port, 0.5 Inch Threads), Outlet: 4-BoltSplit Flange (1.25 Inch Port, 0.5 Inch Threads)
SFT SEAL/FRT FLG/HSG PORTS: Single Viton Shaft Seal, SAE-C 4-Bolt Flange, SAE O-Ring Ports
Special features: Black paint, Danfoss Tag

Related items:
4510429 Danfoss mounting kit SAE-B 13T E-frame

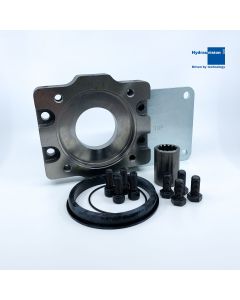

4510432 Danfoss mounting kit SAE-C 14T E-frame
4510427 Danfoss Piston Conversion Kit to 130 cc

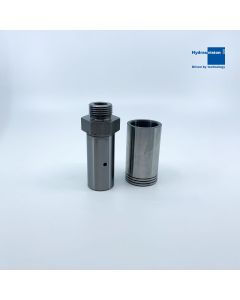

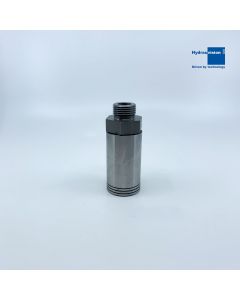

4510428 Danfoss Piston Conversion Kit to 147 cc

Series 45 is a complete family of high performance variable displacement, axial piston pumps. Each frame is designed to exceed the demanding work function requirements of the mobile equipment marketplace. Each frame within the Series 45 family is uniquely designed to optimize performance, size, and cost.

For more information see the product attachments.
