83067514 Danfoss Axial Piston Pump - 100 cc/rev - ER L 100B

83067514 Danfoss Axial Piston Pump - ER L 100B

Product group: Series 45 Open Circuit Axial Piston Pumps - E Frame

Model code: ER-L-100B-LS-20-20-NN-N-3-S1RP-A1N-AAA-NNN-NNN

Features of the Danfoss Axial Piston Pump 83067514:
Rotation: L - Counter-Clockwise Rotation
Displacement and load life: 100 cc/rev - 310 Bar Maximum Continuous Rated Pressure
Control type: Pressure compensated / Load sensing
Pressure Comp Setting: [PC Pressure Range: 100-280 bar, LS Pressure Range: 10-40 bar]
Load Sensing Setting: 200 Bar [2900 psi]
Torque Limiter Setting: 20 Bar [290 psi]
Choke Orifice: None
Gain Orifice: Standard Orifice
SHAFT/AUX FLG/ENDCAP: 14 Tooth 12/24 Pitch Shaft, Running Cover, Radial, Inlet: 4-Bolt Split Flange (2.5 Inch Port, 0.5 Inch Threads), Outlet: 4-BoltSplit Flange (1.25 Inch Port, 0.5 Inch Threads)
SFT SEAL/FRT FLG/HSG PORTS: Single Viton Shaft Seal, SAE-C 4-Bolt Flange, SAE O-Ring Ports
Special features: Black paint, Danfoss Tag

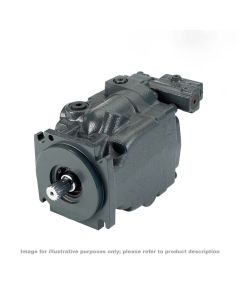

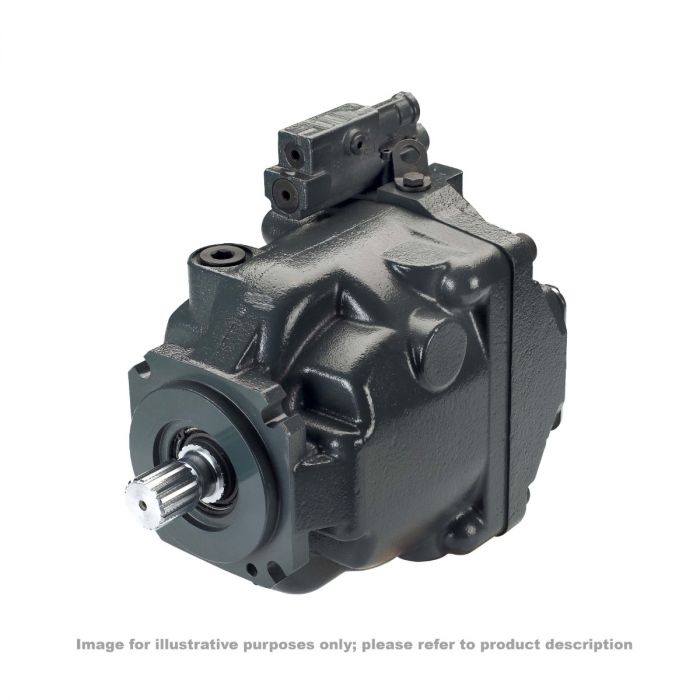

E Frame Axial Piston Open Circuit Pump

Danfoss Series 45 is a complete family of high performance variable displacement, axial piston pumps. Each frame is designed to exceed the demanding work function requirements of the mobile equipment marketplace. Each frame within the Series 45 family is uniquely designed to optimize performance, size, and cost.

Looking for more Technical Information on the Danfoss Series 45 E Frame? Hydrauvision is a Danfoss Premium Partner and offers technical support for all Danfoss components. Our team of technical experts is ready to provide you the requested support.

Please see the product attachments for more information.
