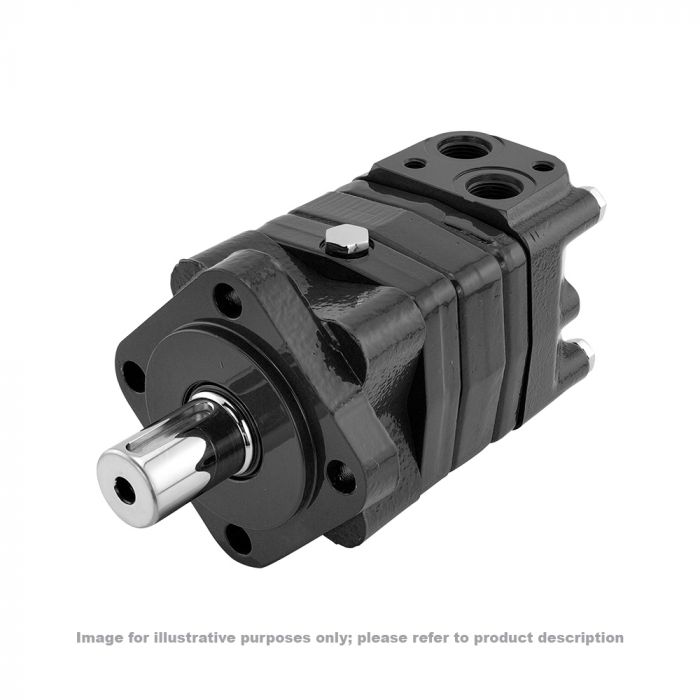

151F0536 White Orbital Motor OMSS 100

White 151F0536 Orbital Motor OMSS 100

Formerly known as Danfoss Orbital Motor

Preferred Orbital Motor for particularly rough operating conditions. Three-zone motor: High efficiency under high pressure.

Features for the White Orbital Motor 151F0536:
Check valve: Yes
Displacement: 100 cc/rev
Mounting Dimension: Pilot dia. 99,9 x 6 [3,93 x 0,24] - B.C. dia. 125 [4,92] ; Dia. 11 [0,43]
Mounting Flange: 4 Bolt – Short
Port Style: Side ported - offset manifold (2 x M10)
Connection: Threaded GAS (BSPP) port
Drain connection: G 1/4"
Shaft seal: None
Seal Kit: 151F0103

The orbital motors are of fixed displacement high-torque design. For a given oil flow and given pressure the displacement (size of motor) determines the speed and torque. For a given displacement (size of motor) the speed is determined by the oil flow rate and the torque is determined by the pressure differential.

Specifications in the product attachment.
