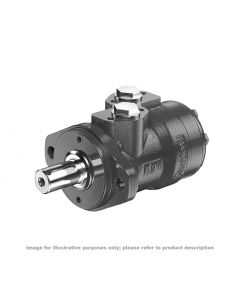

11186658 White Orbital Motor OMR X 160

Name: 11186658 White Orbital Motor OMR X 160
Brand: White
SKU: 107851
Availability: InStock

SKU

107851

€482.97 €399.15

AVAILABLE | WORLDWIDE SHIPPING - WITHIN EU: 2-3 DAYS

Short description

White Orbital Motor OMR X 160 11186658 - Previous Danfoss nr.: 151-0414

More Information

More Information
Price (Excl. Tax)	€399.15
Weight	7.850000
Country of Origin	Poland
Manufacturer	White
HS Code	84122981
Item code	11186658
Displacement	160 cc/rev
Shaft	Cylindrical shaft - 25 mm diameter
Rotation	Bidirectional
Front Flange	SAE-A 2 bolt flange
Controller	None
Auxiliary Mounting	None
Connection	Threaded GAS (BSPP) port
Model code	OMRX-160-NNN-B11-SO-A3-A11-C-E-B-1-N-N-NN-NNN-NNN-NNN-A-NN
Description	White 11186658 Orbital Motor OMR X 160 Formerly known as Danfoss Orbital Motor Orbital Motors with state of art shaft seal. Improves performance and reduces total cost of ownership. Model code: OMRX-160-NNN-B11-SO-A3-A11-C-E-B-1-N-N-NN-NNN-NNN-NNN-A-NN Previous Danfoss number Orbital Motor OMR 160: 151-0414 Features for the White Orbital Motor OMR X 160 11186658: Motorseries: O-Series Check Valve: Yes Displacement: 160 cc/rev Mounting Type: Pilot dia. 82.5 x 8 mm [3.25 x 0.32 in] ; B.C. dia. 106.4 mm[4.20 in] Mounting Flange: A2 Port type: Side port – Offset Port Dimension: G 1/2" Shafts: Cylindrical shaft - 25 mm diameter with straight key ; M8 thread in shaft end Shaft Key: A8 x 7 x 32 mm (DIN 6885) Drain port Dimension: G 1/4" Dust Seal: Int. in shaft seal Shaft Seal: High Pressure Shaft seal - NBR Connection: Threaded GAS (BSPP) port Front bearing: Journal bearing Rear bearing: Journal bearing Slow running high torque motors suitable for 2 directions of rotation. For application in both open and closed loop hydraulic systems. High starting torque, robust and compact design. Specifications in the product attachments. Photo Copyright by Hydrauvision.
