The Sauer Danfoss Series 20 have proven to be both a robust and reliable solution for many applications over its lifespan. Due to the declining volumes, low demand and increasing supply constraints, Sauer Danfoss has exited the Series 20 parts, kits, reman and service unit business. We offer Sauer Danfoss SPV & SMF parts. Formerly known under the brand Sauer Danfoss, now known under Danfoss Power Solutions. The Series 20 parts available at Hydrauvision will be sold until the stock runs out.

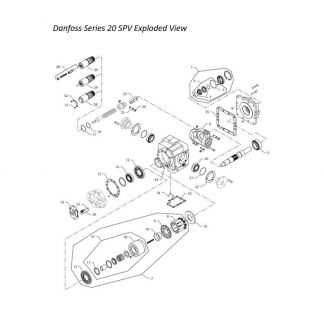

Sauer Danfoss Series 20 Pumps
Sauer Danfoss axial piston variable displacement pumps are of swash plate design with variable flow capability suitable for hydrostatic transmissions with closed loop circuit. Tilting the swash plate to the opposite side of the neutral or zero displacement position reverses flow direction. The full-length shaft with a highly efficient tapered roller bearing arrangement offers a high loading capacity for external radical forces. The hydro-mechanical servo displacement control maintains the selected swash plate position and hence pumps displacement. Upon release of the control handle, the swash plate automatically returns to zero position and the flow reduces to zero. High case pressures can be achieved without leakage even at the lowest temperatures by using suitable shaft seals. The servo valve arrangement offers the facility to incorporate function regulators and remote control systems. Axial piston units are designed for easy servicing. Complete dismantling and reassembly can be carried out with standard hand tools, and all components or sub-assemblies are replaceable.
Many of the individual parts and assemblies are interchangeable throughout the entire Sauer Danfoss 20 series. This includes such items as the servo valve, the charge pumps and the manifold components.
Sauer Danfoss
Formerly known under the brand SauerDanfoss, now known as Danfoss Power Solutions. The Sauer Series 20 is now the Danfoss Series 20. Sauer Danfoss was originally founded in 1933 as Sauer-Sundstrand. It later merged with American company Danfoss in 2000 to become Sauer Danfoss.
Danfoss Power Solutions is a respected name in the field of hydraulic and electronic systems, known for its commitment to sustainability, innovation, and customer satisfaction.
Hydrauvision webshop
Hydrauvision is a specialist in all areas where drive technology plays a central role. We offer a wide range of hydraulic components in our webshop.
