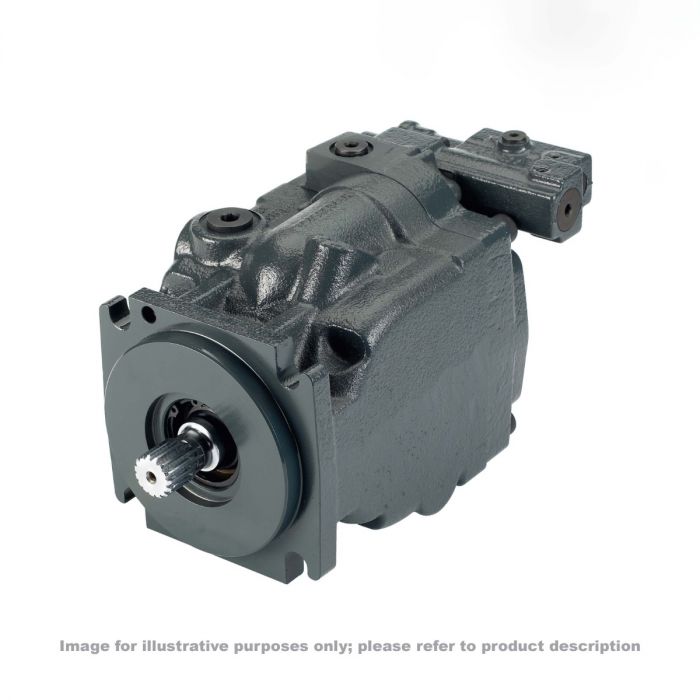

83106377 Danfoss Axial Piston Pump - 51 cc/rev - JR R S51B

83106377 Danfoss Axial Piston Pump - JR R S51B

Product group: Series 45 Open Circuit Axial Piston Pumps - J Frame

Model code: JR-R-S51B-LS-20-20-NN-N-3-C2BE-A8N-NNN-JJJ-NNN

Features for the Danfoss Axial Piston Pump 83106377:
J Frame Axial Piston Open Circuit Pump
Rotation: R – Clockwise Rotation
Displacement and load life: 51 cc/rev - 310 Bar Maximum Continuous Rated Pressure
Control type: Pressure compensated / Load sensing [PC Pressure Range: 100-280 bar, LS Pressure Range: 10-40 bar]
Pressure Comp Setting: 200 Bar [2900 psi]
Load Sensing Setting: 20 Bar [290 psi]
Torque Limiter Setting: Not applicable
Choke Orifice: None
Gain Orifice: Standard Orifice
SHAFT/AUX FLG/ENDCAP: 13 Tooth 16/32 Pitch Shaft, SAE-B 13 Tooth Auxiliary, Radial, Inlet: 4-Bolt Split Flange (2 Inch Port, 0.5 Inch Threads), Outlet:4-Bolt Split Flange (1 Inch Port, 0.375 Inch Threads)
SFT SEAL/FRT FLG/HSG PORTS: Single Viton Shaft Seal, SAE-B 2-Bolt Flange, SAE O-Ring Ports
Displacement Limiter: None
Special features: Black paint, Danfoss Tag

Series 45 is a complete family of high performance variable displacement, axial piston pumps. Each frame is designed to exceed the demanding work function requirements of the mobile equipment marketplace. Each frame within the Series 45 family is uniquely designed to optimize performance, size, and cost.

For more information see the product attachments.
