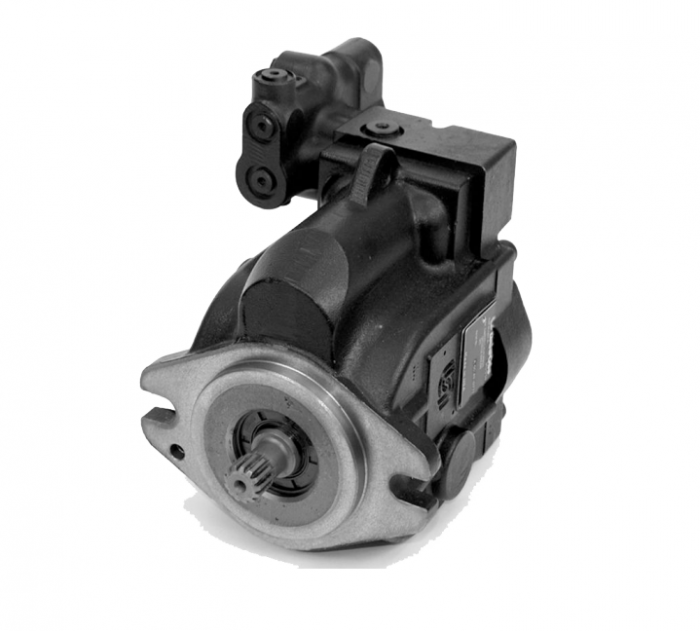

7005233S Danfoss Axial Piston Pump - Picture similar to product

7005233S Danfoss Axial Piston Pump - 25 cc/rev - LR R 025C

Name: 7005233S Danfoss Axial Piston Pump - 25 cc/rev - LR R 025C
Brand: Danfoss
SKU: 37919
Availability: InStock

SKU

37919

€2,788.57 €2,304.60

AVAILABLE | WORLDWIDE SHIPPING - WITHIN EU: 2-3 DAYS

7005233S Danfoss Axial Piston Pump LR R 025C - 25 cc/rev

Short description

7005233S Danfoss Axial Piston Pump LR R 025C - 25 cc/rev

More Information

More Information
Price (Excl. Tax)	€2,304.60
Weight (in KG)	20.000000
Country of Origin	Slovakia
Manufacturer	Danfoss
HS Code	84135061
Item code	7005233S
Displacement	25 cc/rev
Shaft	Straight Key Shaft – 7/8" inch
Rotation	Clockwise
Front Flange	SAE-B 2 bolt flange
Controller	Press. comp. control + load sensing control
Auxiliary Mounting	None
Connection	Thread SAE
Model code	LR-R-025C-LS-20-20-NN-N-3-K2NF-A6N-AAA-NNN-NNN
Description	Danfoss 7005233S Axial Piston Pump Model code: LR-R-025C-LS-20-20-NN-N-3-K2NF-A6N-AAA-NNN-NNN Features for the Danfoss Axial Piston Pump 7005233S: Series 45 Pump Type - LR R 025C Displacement: 25 cc/rev Rotation: Clockwise rotation Load Life: 260 Bar Maximum Continuous Rated Pressure Control type: PC Pressure Range: 100-280 bar, LS Pressure Range: 10-40 bar Pressure compensator setting: 200 Bar [2900 psi] Load sensing setting: 20 Bar [290 psi] Torque limiter setting: NOT APPLICABLE Pilot Orifice: None Gain orifice: Standard Orifice Shaft, auxiliary flange, and endcap: 0.875 Inch Straight Key Shaft, Long, No Auxiliary, Axial, Inlet: SAE O-Ring Boss Port (1.875 Inch Threads), Outlet: SAE O-Ring BossPort (1.3125 Inch Threads), Control Left Side, w/Displacement Limiter Shaft seal, front flange, and housing ports: Single Viton Shaft Seal, SAE-B 2-Bolt Flange, SAE O-Ring Ports Displacement limiter: Adjustable Displacement Limiter set to max Special features: Black Paint, Danfoss Tag Product group: Series 45 Open Circuit Axial Piston Pumps Looking for more Technical Information on the Danfoss Series 90? Hydrauvision is a Danfoss Premium Partner and offers technical support for all Danfoss components. Our team of technical experts is ready to provide you the requested support. More information in the product attachment.
